37 – 40 GHz Filters

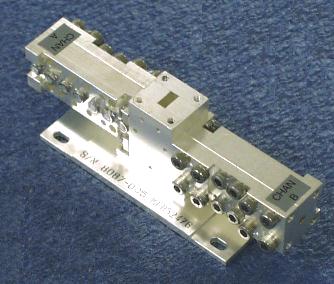

Diplexer
Electrical Performance 612275 Wideband 611475 Narrowband Passband Bandwidth, Minimum fo +/- 180 MHz fo +/- 320 MHz Passband Ripple, Maximum +/- 0.15 dB +/- 0.15 dB Passband Insertion Loss Maximum 1.3 dB 0.7 dB Passband VSWR 1.3:1 Max 1.3:1 Max 50 dB Rejection, Minimum @ fo +/- 525 MHz @ fo +/- 940 MHz Operating Temperature […]
Band Pass Filter
Frequency Range 37- 40 GHz Ripple Bandwidth Minimum fo +/- 175 MHz Insertion Loss @ fo Max 1.2 dB Passband Flatness Max 0.5 dB Passband VSWR Max 1.3:1 Rejection @ fo +/- 525 MHz Min 55 dB Approximate Dimension 1.87″ x 0.75″ x 0.75
