Band Reject Filters

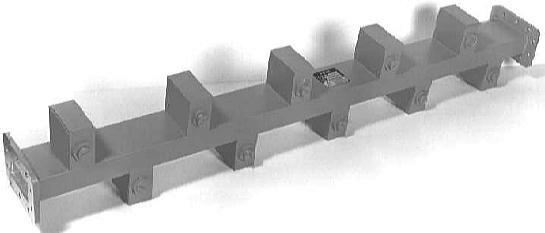

Band Reject Filter – Waveguide
Ka Band Reject Filter This filter was initially designed to isolate the fundamental transmitter out put signal from the local oscillator in high reliability Ka-BAND communications equipment. Constructed in WR42, similar to above photo, the filter exhibits low passband insertion loss and high isolation in the reject band. Specifications are for CMC P/N 401325 are […]

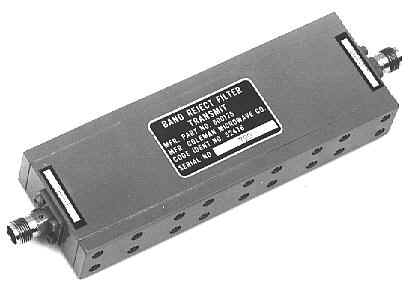

Band Reject Filter – Coaxial
CMC Part Number 600175 Specifications Reject Frequency 9.338 GHz 52 dB BW +/- 145 MHz 3 dB BW +/- 270 MHz Passband 7.0 – 12.0 GHz Passband Ins Loss 1.5 dB Max Passband VSWR 2.0:1 Max Connectors TNC Female
