Harmonic Filters

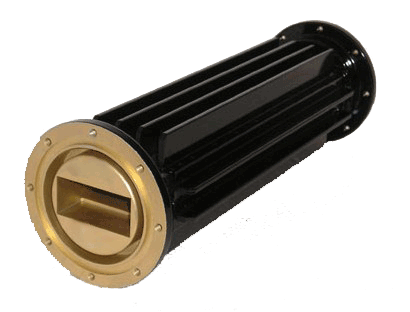

Harmonic-Reflective Filters
CMC Part Number 601525 Specifications Passband Frequency 4.4 – 5.0 GHz Insertion Loss 0.2 dB max VSWR 1.3:1 max Power 1.5 KW CW Stopband Insertion Loss 2nd Harmonic 60 dB Min 3rd Harmonic 60 dB Min 4th Harmonic 60 dB Min Reflective Filters A microwave signal contains microwave energy principally at its fundamental frequency. […]

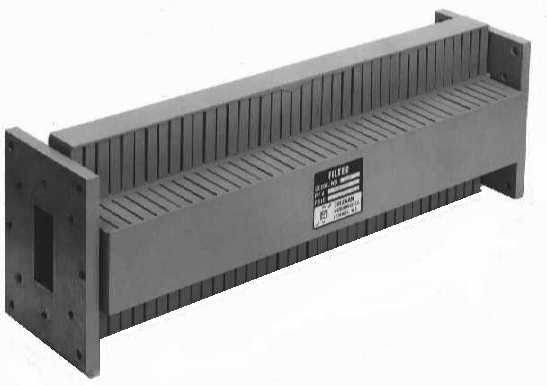

Harmonic-Absorptive Filters
CMC Part Number 600100 Specifications CMC Part Number 600100 Passband 4.4 – 5.0 GHz Insertion Loss 0.22 dB Max VSWR 1.12:1 Power 10.0 KW CW Attenuation 2nd Harmonic 40 dB Min 3rd Harmonic 30 dB Min 4th Harmonic 20 dB Min Flanges UG-470/U
