Band Reject Filter – Waveguide
Ka Band Reject Filter

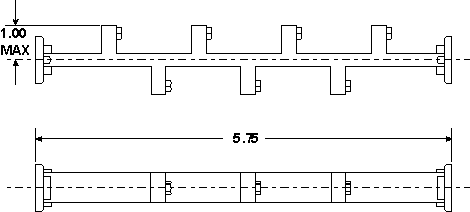

This filter was initially designed to isolate the fundamental transmitter out put signal from the local oscillator in high reliability Ka-BAND communications equipment. Constructed in WR42, similar to above photo, the filter exhibits low passband insertion loss and high isolation in the reject band.
Specifications are for CMC P/N 401325 are as follows:
| Specifications | |
| Reject Frequency | 19.54 GHz ± 10 MHz |
| Reject Level | 70 dB Min |
| Passband | 19.73 – 21.1 GHz |
| Passband Insertion Loss | 1.0 dB Max |
| Passband VSWR | 1.35:1 Max |
