Fixed Waveguide Bandpass Filters
FW Series

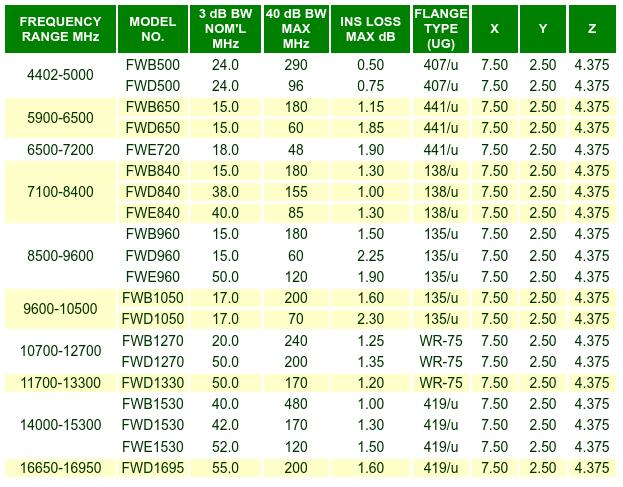

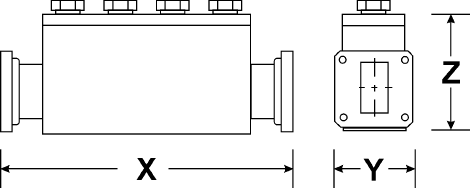

Fixed Filter Examples – Waveguide
| CMC Part Number | 400435 |
| Center Frequency: | 8150 MHz |
| Passband: | 7.9 – 8.4 GHz |
| Passband VSWR: | 1.4:1 MAX |
| Ins Loss: | 1.0 dB MAX |
| Rejection: | 110 dB MIN @ 7.75 GHz |
| Power Handling: | 3 KW MAX |
| 2nd Harmonic Attenuation: | 60 dB |
DESCRIPTION:
The FW Series Filters are available in 2 through 6 cavities with tuning ranges from 1,600 – 40,000 MHz. These units are constructed in lightweight aluminum and operate in the TE 111 cylindrical mode. All filters in this series are temperature compensated and are designed to meet the latest military specification. Variations in bandwidth and tuning range which are different from the standard units are available. Please send us your specific requirements.
| Standard Features | Options |
|
|
