Individual Tuned Bandpass Filters
IC Series
IC Series Examples
 |

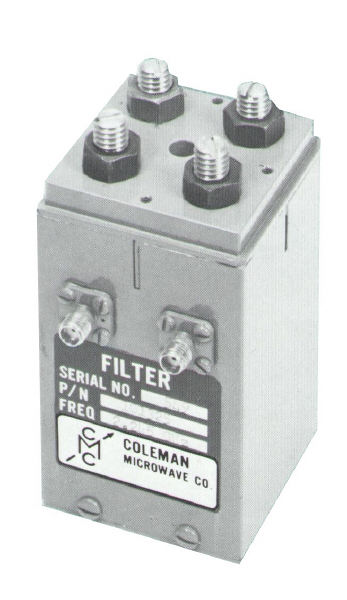

| CMC Part No.: |
101325 |
| Frequency Range: |
1.7 – 2.4 GHz |
| 3 dB Bw: |
40 MHz |
| VSWR: |
1.5:1 max. @ f0 ± 10 MHz |
| Ins Loss: |
0.6 dB max. @ f0 ± 10 MHz |
| Rejection: |
75 dB min. @ f0 ± 100 MHz |
|
 |

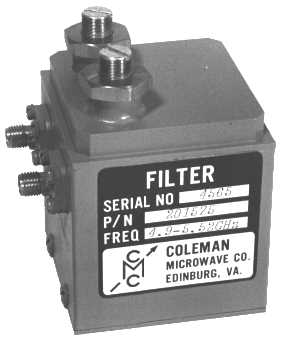

| CMC Part No.: |
201575 |
| Tuning Range: |
4.9 – 5.6 GHz |
| 3 dB BW: |
16 MHz |
| VSWR: |
1.4:1 max. |
| Ins Loss: |
1.5 dB max. |
| Rejection: |
25 dB min. @ f0 ± 60 MHz |
|

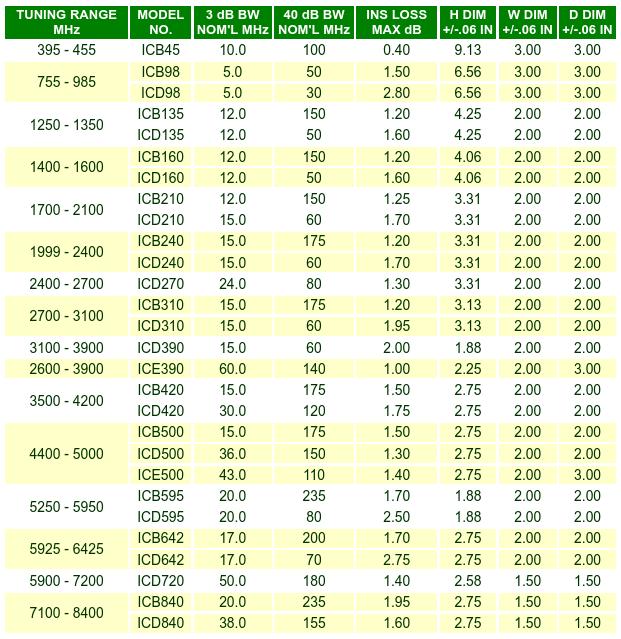

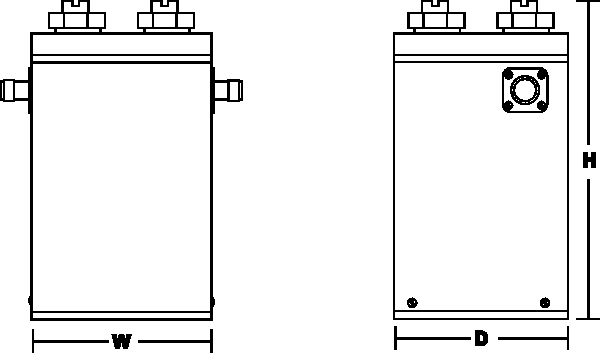

The IC Series Filters yield a butterworth (maximally flat) response and are available with 2 thru 6 cavities. Tuning is accomplished by means of individual screwdriver shafts. All conducting surfaces are silver plated to minimize insertion loss in the passband. Filters in this series are available from 395-8400 MHz. Outline drawings available upon request.
| Standard Features |
Options |
- Low Cost
- Low Insertion Loss
- VSWR-1.35:1
Maximum @ fo
- Temperature Compensation
- Type SMA-F Connectors
|
- Modified 3dB BW
- Modified Frequency Ranges
- Mounting Brackets
- Type N, BNC or TNC Connectors
|
