Terminations

Coleman Microwave has designed a complete line of Low & Medium Power Waveguide Terminations for laboratory or system use. Units are available form 2.6 to 50.0 GHz and are constructed in dip brazed aluminum, (Brass for units above 18.0 GHz). Flexible design allows easy adaptation to customer specifications such as power, size and special flange mounting.

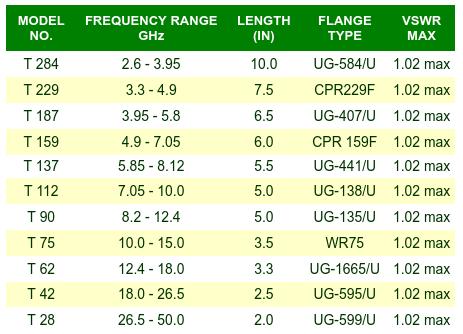

Low Power Terminations

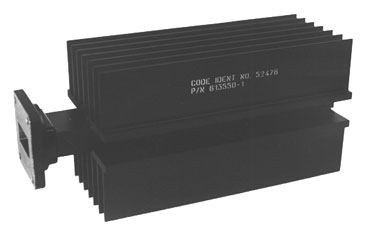

High Power Terminations

CMC offers terminations in waveguide sizes from WR650 to WR28. Power handling is available from low power lab levels to fan cooled multi-kilowatt applications. Terminations are manufactured to your exact requirements.
