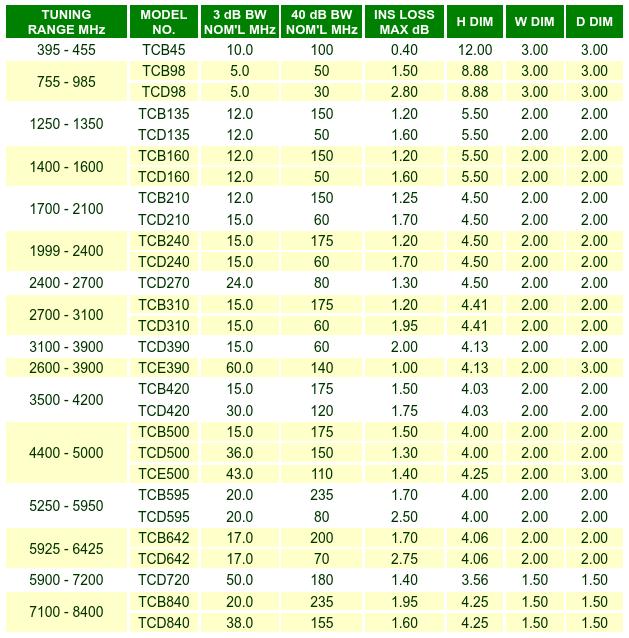

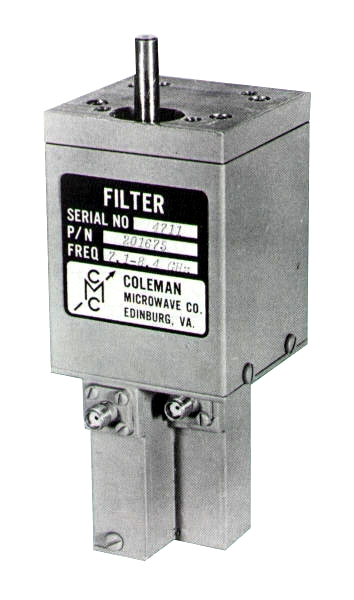

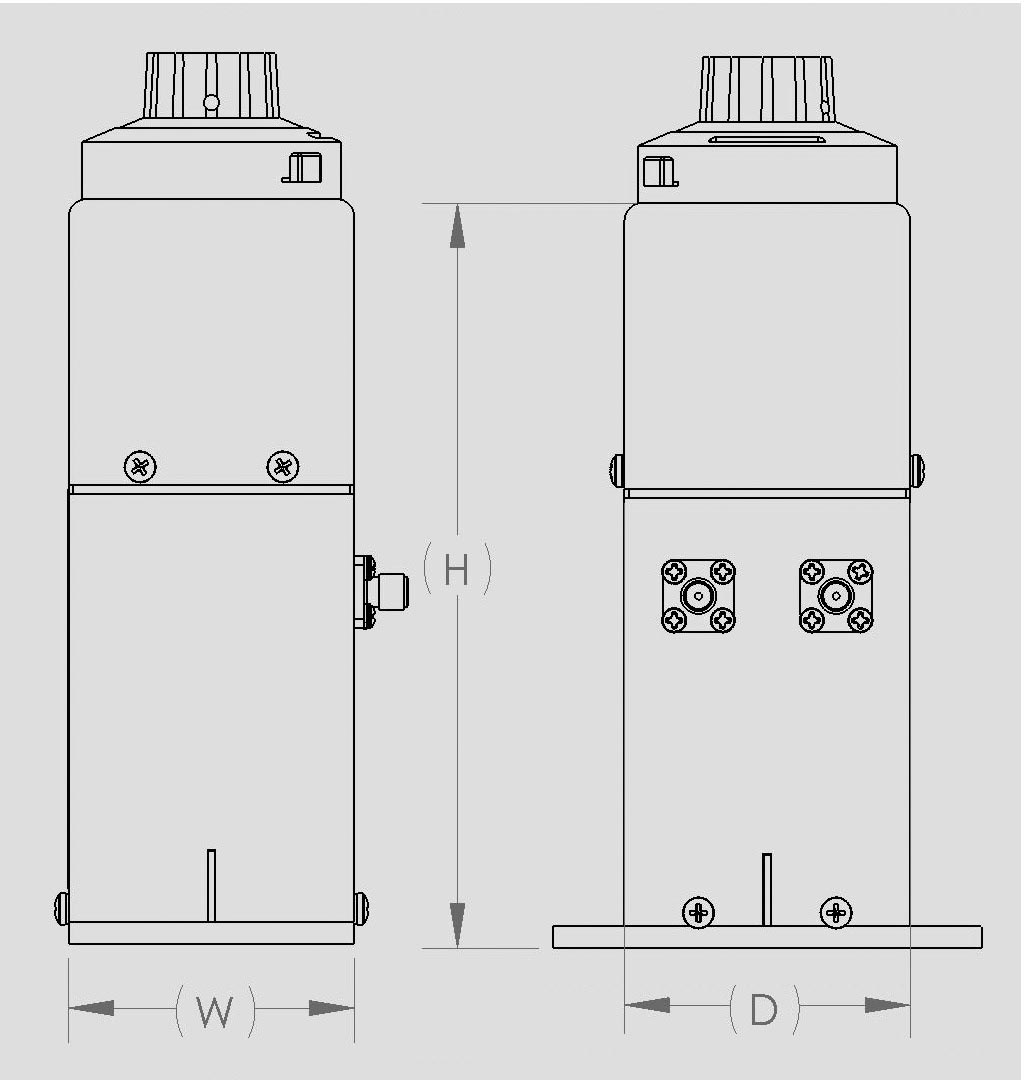

TC Series Filters yield a butterworth (maximally flat) response and are available with 2 thru 8 cavities. Tuning is accomplished by means of a single knob which is coupled to a precision gear train. All conducting surfaces are silver plated to minimize insertion loss in the passband. Filters in this series are available in tuning ranges from 395-8400 MHz. Outline drawings available upon request.
| Standard Features |
Options |
- Low Cost
- Single Knob Tuning
- Low Insertion Loss
- VSWR-1.5:1
Maximum @ fo
- Temperature Compensation
- Type SMA-F Connectors
- Calibrated Knob with Calibration Chart
|
- Calilbration
(See Cal Options)
- Modified 3dB Bandwidths
- Modified Frequency Ranges
- Mounting Brackets
- Type N, BNC or TNC Connectors
|
