Waveguide Individual Tuned Bandpass Filters
IW Series

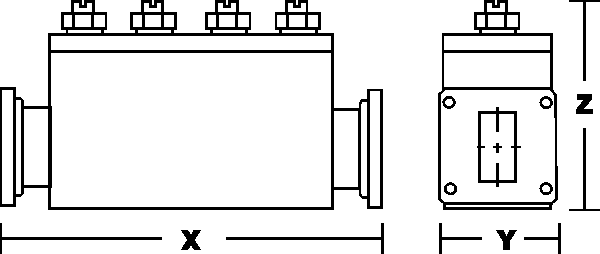

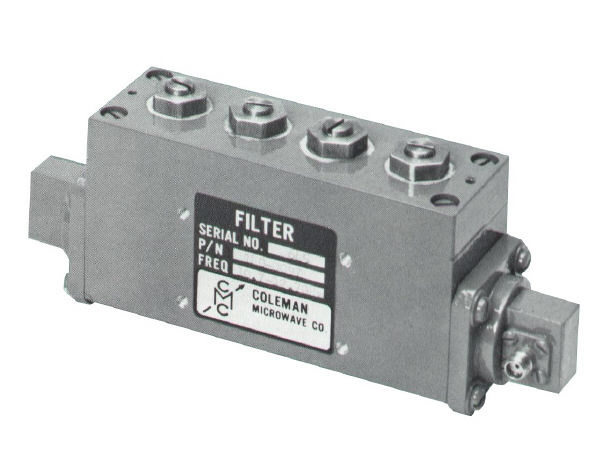

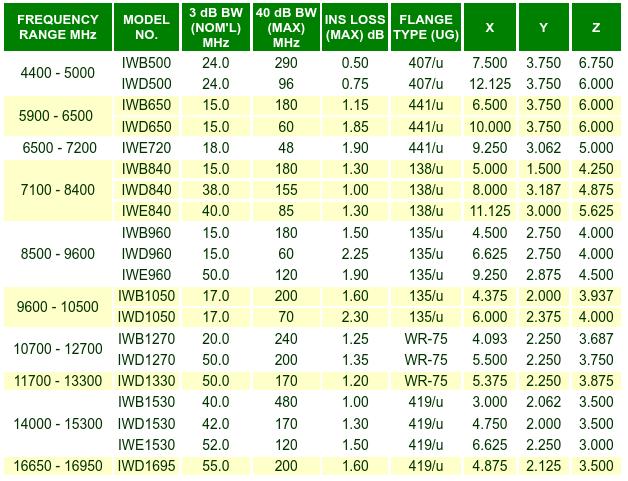

IW Series Adjustable Filter Examples
 |
| CMC Part No.: |
400125 |
| Frequency Range: |
7.1 – 7.7 GHz |
| 3 dB BW: |
35.0 MHz |
| VSWR: |
1.1:1 max. @ f0 |
| Ins Loss: |
0.3 dB max. @ f0 |
| Rejection: |
20 dB min. @ f0 ± 50 MHz |
|
 |
| CMC Part No.: |
100750 |
| Frequency Range: |
10.7 – 12.7 GHz |
| 3 dB BW: |
45 MHz |
| VSWR: |
1.3:1 max. @ f0 ± 10 MHz |
| Ins Loss: |
1.2 dB max. @ f0 ± 10 MHz |
| Rejection: |
60 dB min. @ f0 ± 135 MHz |
| Connector: |
SMA Female or
WR 75 Cover Flange |
|
The IW Series Filters are available in 2 through 6 cavities with tuning ranges from 1,600 – 40,000 MHz. These units are constructed in lightweight aluminum and operate in the TE 111 cylindrical mode. All filters in this series are temperature compensated and are designed to meet the latest military specification. Variations in bandwidth and tuning range which are different from the standard units are available. Please send us your specific requirements.
| Standard Features |
Options |
- Individual screwdriver adjustment
- Low cost
- Low Insertion loss
- VSWR 1.5:1 Max @f0
- Aluminum construction
- Temperature compensation
|
- Modified 3dB BW
- Modified tuning ranges
- Mounting brackets
- Coaxial input and/or output
|
