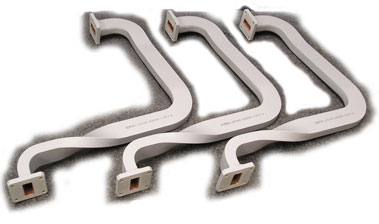

Waveguides Assemblies
CMC offers a comprehensive selection of waveguide assemblies including straight sections, formed or mitered E and H bends, twists and flexible guide. Each of these component parts can be combined with one or more additional parts to create complex assemblies which minimize flanges and cost while optimizing performance. Waveguide assemblies are available from WR650 to WR28. Materials include aluminum, brass, copper, and silver. All are manufactured with precision flanges and guides to meet your exact specifications.
Use the navigational menu on the right to explore our line of assemblies.
 |
 |
 |
 |

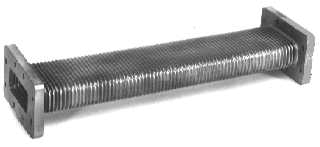

Waveguide Flexible Sections
The F series are flexible sections of unjacketed waveguide which conform to MIL-A-287/4 and exhibit low insertion loss and VSWR. The maximum available length is 6 feet.

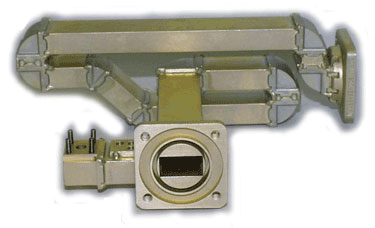

Compound Waveguide Bends
Compound Bends can be created by combining straight sections, formed or mitered E and H bends, twists and/or flexible guide. Such complex assemblies help minimize flanges and cost while optimizing performance. Compound assemblies are available from WR650 to WR28. Materials include aluminum, brass, copper, and silver. All are manufactured with precision flanges and guides to […]
Waveguide Bends (Mitered)
The B series consists of two sections of waveguide and a cast bend conforming to MIL-A-85. Maximum lengths are six feet for either direction. All units exhibit low insertion loss and VSWR. Exterior surfaces are painted grey semi-gloss enamel.
Waveguide Swept Bends
The BS series Swept Waveguide Bend consist of precision waveguide tubing bent in the E or H plane and then brazed to your choice of flanges. Bends are available in aluminum and copper. Semi-gloss grey paint is the standard external finish. Consult CMC’s design staff for the minimum bend radius for the guide size of […]
Waveguide Twists
The T series are twisted sections of rectangular waveguide which conform to MIL-A-85 and exhibit low insertion loss and VSWR. The maximum available length is 12 feet. Exterior surfaces are painted grey semi-gloss enamel.

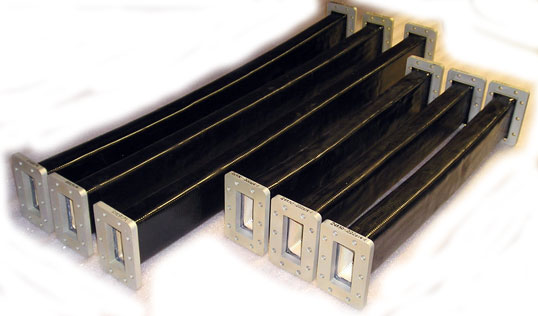

Waveguide Straight Sections
The S series is a straight section of rectangular waveguide which conforms to MIL-A-85 and exhibits low insertion loss and VSWR. The maximum length available is 12 feet. Exterior surfaces are painted grey semi-gloss enamel.
